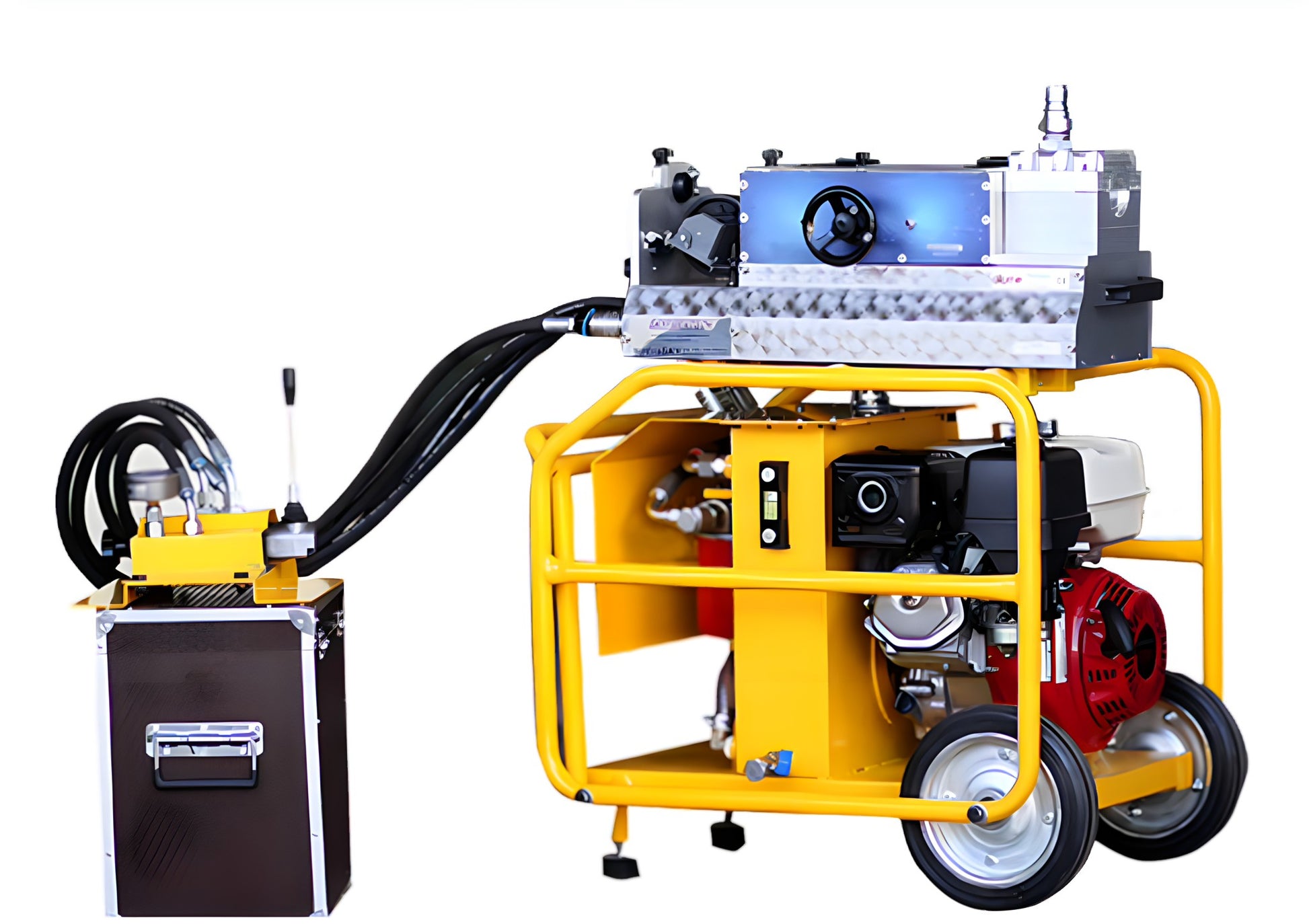

Pro Fiber Hydro is a machine that is used to blow fiber optic cables into HDPE pipes, powered by a hydraulic power unit and can work with hydraulic motors. Pro Fiber Hydro cable blowing machine performs blowing of fiber cables between 6 mm and 24mm.

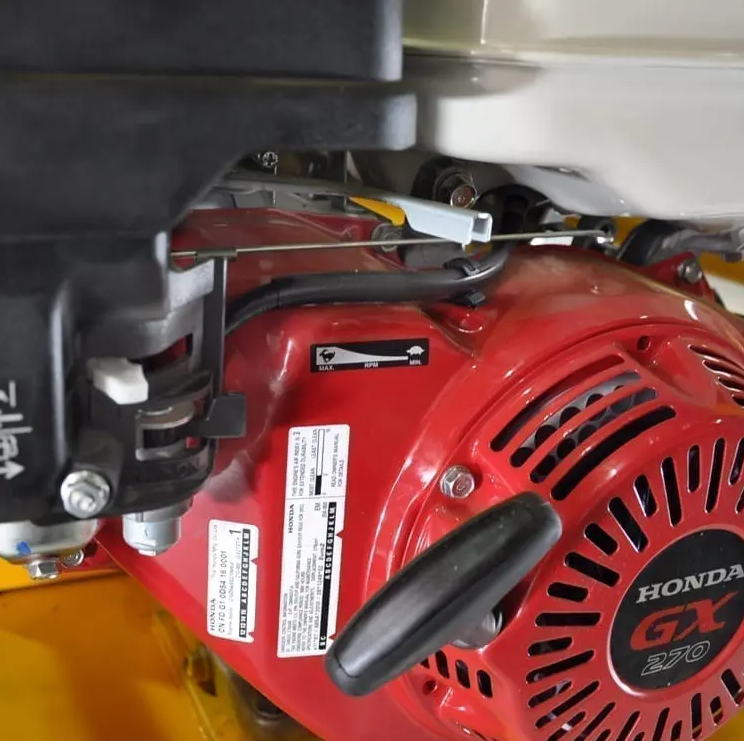

The hydraulic cable blow machine Pro Fiber Hydro is the most powerful machine in its class. There is a 9hp (Honda Gx270) gasoline engine on the machine. Also it provides trouble-free performance with the cooling and filtering system in the power unit.
Pro Fiber Hydro cable blow machine provides 8 liters of oil pressure per minute with 20 liters of hydraulic oil capacity. With its detachable control unit, Pro Fiber Hydro can easily blow the fiber cable even in difficult conditions.
Its main areas of use are airports, Petro pipelines, Telecom Companies, Outdoor infrastructure and superstructure projects, Fiber infrastructure support centers, industrial fiber optic data centers FTTH – FTTX.
Hydraulic Cable Blow
It performs a great hydraulic cable blow process with its strong structural balance. After 2 hydraulic hoses are attached to the hydraulic power unit, it is easily ready for use. Owing to its ergonomic structure, it is easy to carry everywhere. It adapts to all conditions with its easy-to-use control unit.
There is an extra meter counter in the cabled blow unit.
It is extremely successful in long cable blow processes.
*You can easily throw cables up to 20000 feet with our machine. (This distance is directly related to your project conditions.) Optional water inflow can be added to increase the blow distance.
Pro Fiber Hydro starts working after connecting the cable blow machine to the compressor with the air hose coupling.

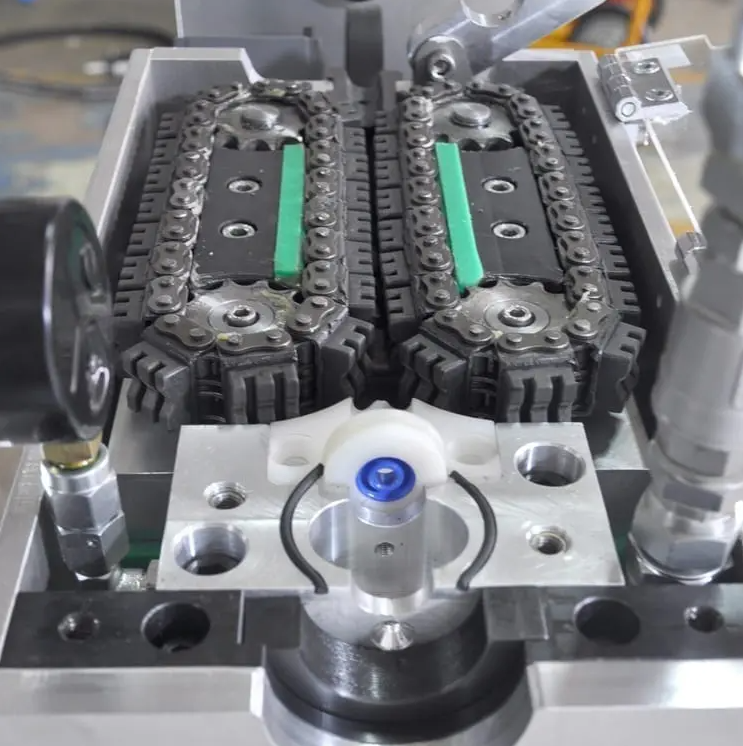

4 Different Belt System (Chain Sets)
Fiber Optic Cable Blow Machine for Your Integrated Projects
Chain Range Sets;
4mm-7mm / 8mm-13mm / 14mm-18mm and 19mm-24mm
Duct size set (can be produced in any diameter optionally)
All equipment and supporter apparatus required for your projects are provided with the machine.
Pro Fiber Hydro General Features
- The best for long distance blowing.
- Quick and easy change chain system.

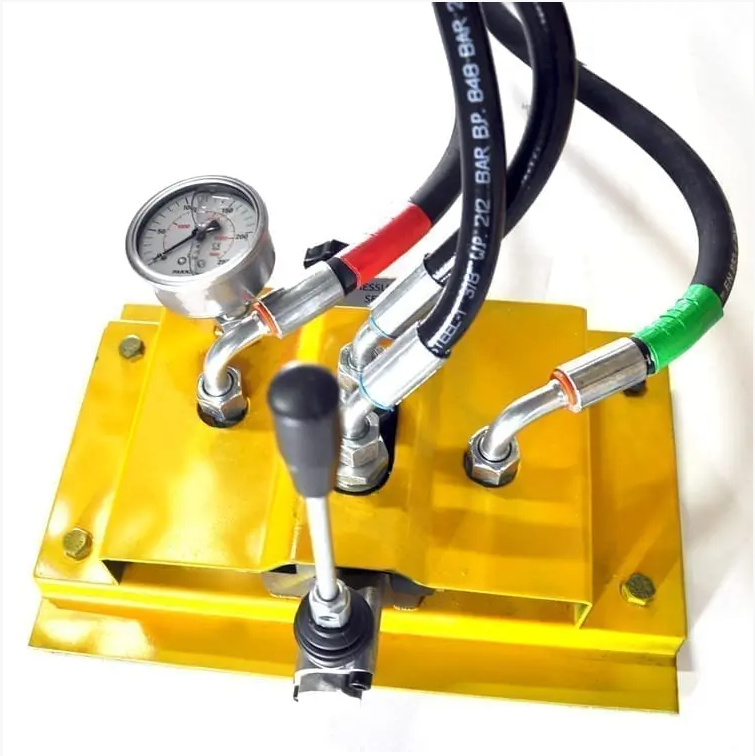

- Remote control unit.
- Built-in hydraulic power unit (8 liters of oil pressure per minute with Honda Gx270).
- Different belt sizes for cables of different diameters.
- Special gear system.
- Semi-automatic belt press system.
- Pipe pressure manometer.

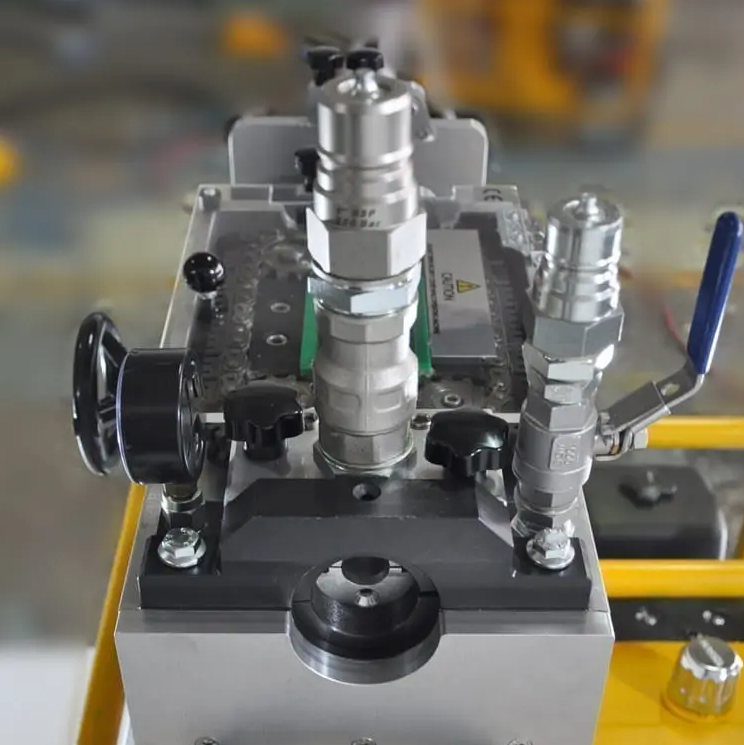

- Quick connection elements.
- Optionally interchangeable pipe apparatuses of different diameters.
- Safety protection cap.
- Waterproof marine-contra storage box.
Technicial Specifications
Pushing Force: 0 – 100 kg Pushing Speed: 0 – 590 LF/min Cable Size : 6 – 24 mm OD Hdpe Pipe Diameter: 20 – 63 mm O.D PLB Hydraulic Drive System :: 100 Bar (Max) Using Features : Honda Motor : Gx270 9 HP Gasoline Hydraulic Oil Capacity: (Filled by the user) 25 Liter Connection System : Heavy Duty Hydraulic Hose (min): 25mm (1”): Compressor connection hose is not provided with the machine. Operating pressure : 12 Bar Air consumption to minimum recommended pipe diameter (at 12Bar) : 0 – 25mm : 4m³/min 150 CFM 26mm – 30mm : 5m³/min 185 CFM 31mm – 35mm : 7m³/min 250 CFM 36mm – 40mm : 10m³/min 375 CFM 41mm – 44mm > : 12m³/min 450 CFM
