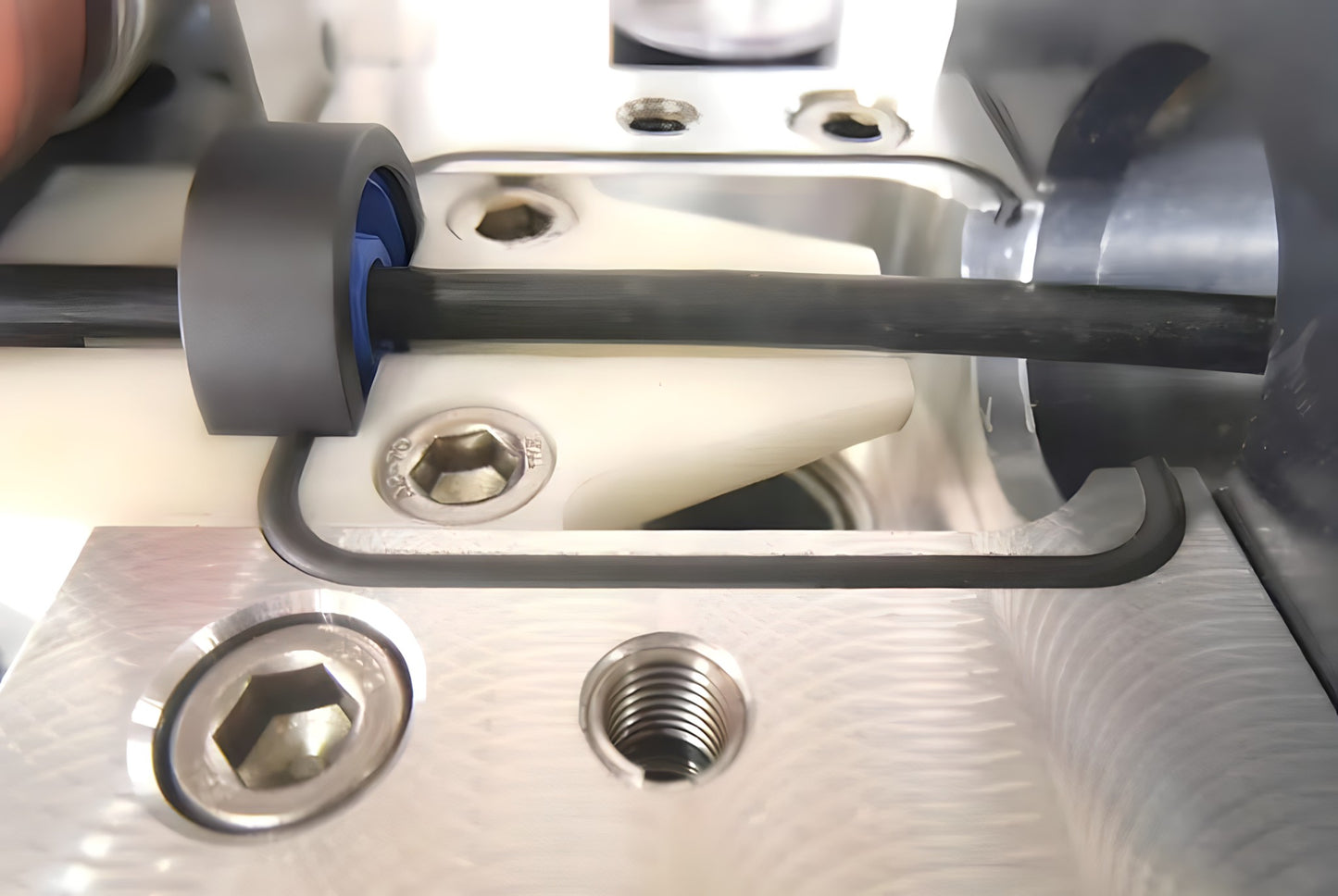

Pro Fiber Blowing Machine Pneumatic

Pro Fiber blowing machines is a machine used to blow fiber optic cables into HDPE pipes.
Pro Fiber  cable blowing machine performs blowing of fiber cables between 2.5 mm to 16 mm.

Pro Fiber  blowing machine contains a single air motor. It works by releasing the compressed air from the compressor into the air motor and pipe. The incoming compressed air drives the engine and the belt system directly, causing the belts to rotate.

The recommended minimum amount of air is 12 bar and 1m ^ 3 (this amount decreases or increases depending on the Cable and Pipe diameter) and is compatible with all air compressors. All necessary connection adapters are provided with the machine.

4 Different Belt System

Fiber Optic Cable Blowing Machine for your Integrated Projects Standard cable and pipe sizes used for Pro Fiber cable blowing machine.
Cable Sizes: 2.5mm-3mm-4mm-5mm-6mm-7mm-8mm-9mm-10mm-11mm-12mm-13mm-14mm-15mm-16mm

(With each cable diameter, cable bushings and seals are also provided.)
There are four different belt sets of for cable diameters.
Belt Sets;
2.5mm-4mm / 5mm-8mm / 9mm-12mm / 13mm-16mm

Pro Fiber General Features

• Forward – Backward direction valve.
• Quick and easy change belt system.
• Digital counter that ount speed and meter.
• Different belt sizes for cables of different diameters.
• Bi-directional (Forward-Backward) directed propulsion.
• Air compressor coupling.
• Fiber optic cable pads for different diameters (from 2.5mm to 16mm)
• HDPE pipe connectors for different diameters (from 8mm to 63mm)
• Special gear system
• Semi-automatic belt press system
• Pipe pressure manometer.
• Quick connection elements.
• Optionally interchangeable pipe apparatuses of different diameters.
• Safety protection cap
• Waterproof marine-contra storage box
• Its main areas of use are airports, Petro pipelines, Telecom Companies, Outdoor infrastructure and superstructure projects, Fiber infrastructure support centers, industrial fiber optic data centers FTTH – FTTX.



Technicial Specifications

Pushing Force:	0 – 300 N
Pushing Speed:	0 – 150 m/min
Cable Size :	2,5 – 16 mm
Duct Size :	8 – 63 mm
Drive Motor :	Air

Air consumption per recommended minimum pipe diameter (at 12Bar):
0 – 8mm :	1m³/min 40-50 CFM
From 8  to 12mm:	2m³/min 100-120 CFM
From 12mm to 16mm :	3m³/min 150 CFM
From 16mm to 20mm :	4m³/min 200 CFM
From 20mm to 32mm :	5-6m³/min 300 CFM



Pro Fiber Standart Package

• Cable Nutrings (each cable diameter 5 pcs)
• Duct adapeter sets (Required your duct diameters)
• O-Rings
• 2,5mm-4mm Cable Bed & Nutrings (Optional)
• 2,5mm-4mm Chain Set (Optional)
• 5mm-8mm Cable Bed & Nutrings
• 5mm-8mm Belt Set
• Allen sets for bolts
• Compressor hose adapter (Coupler)
• 9mm-12mm Cable Bed & Nutrings (Optional)
• 9mm-12mm Belt Set (Optional)
• 13mm-16mm Cable Bed & Nutrings (Optional)
• 13mm-16mm Belt Set (Optional)
• Accessories box
